Xplore 422

• Space-saving Whale heating- runs on gas or electric with quiet night-time setting - internally ducted heating throughout including bathrooms (304 and 422 are 2kW. 554 and 585 are 4kW)
• Easy to use Whale Duo Control
• Grade III Thermal Insulation for guaranteed all weather comfort
• 6'5'' Headroom
• Stylish shaped double-glazed opening windows with night ventilation position
• Retractable bed to 554, creating a comfortable daybed and 400mm additional floorspace during the day. Improved access when in night-time position.
• Co-ordinating headboard for greater comfort and style (554 fixed bed only)
• Fixed bed frames with easy-lift gas struts for improved-access storage (554 fixed bed only)
• Fixed bed mattresses are lightweight, yet super-supportive with soft-touch Argentum+ anti-bacterial and anti-allergy technology with Silver
• Easy to use Whale Duo Control combination controller
• Privacy curtains or room dividers (excludes 422)
• Rooflight with pleated blind and separate flyscreen
• Fully opening spring-assisted beech slat bases on all bunks and beds for easy access
• Seat backrest ventilation boards
• Easy clean blinds and flyscreens to all windows

• Thetford Triplex Oven with 3-burner gas hob
• Combination oven and grill
• Dometic series 10 fridge (304, 422 and 544 are 98ltrs and 585 is 133ltrs)
• Black gloss enamelled sink with glass lid creating additional work surface
• Spacious storage cupboards
• Worktop extension (selected models)
• Well-lit kitchen work area with energy-saving LED downlights
• Polished chrome fittings and taps
• Modern White Chromix splashback
• Cutlery tray

• Teleco Teleplus X2/39U Directional Aerial
• TV points with dedicated locations for comfortable viewing (230V, 12V and aerial connection)

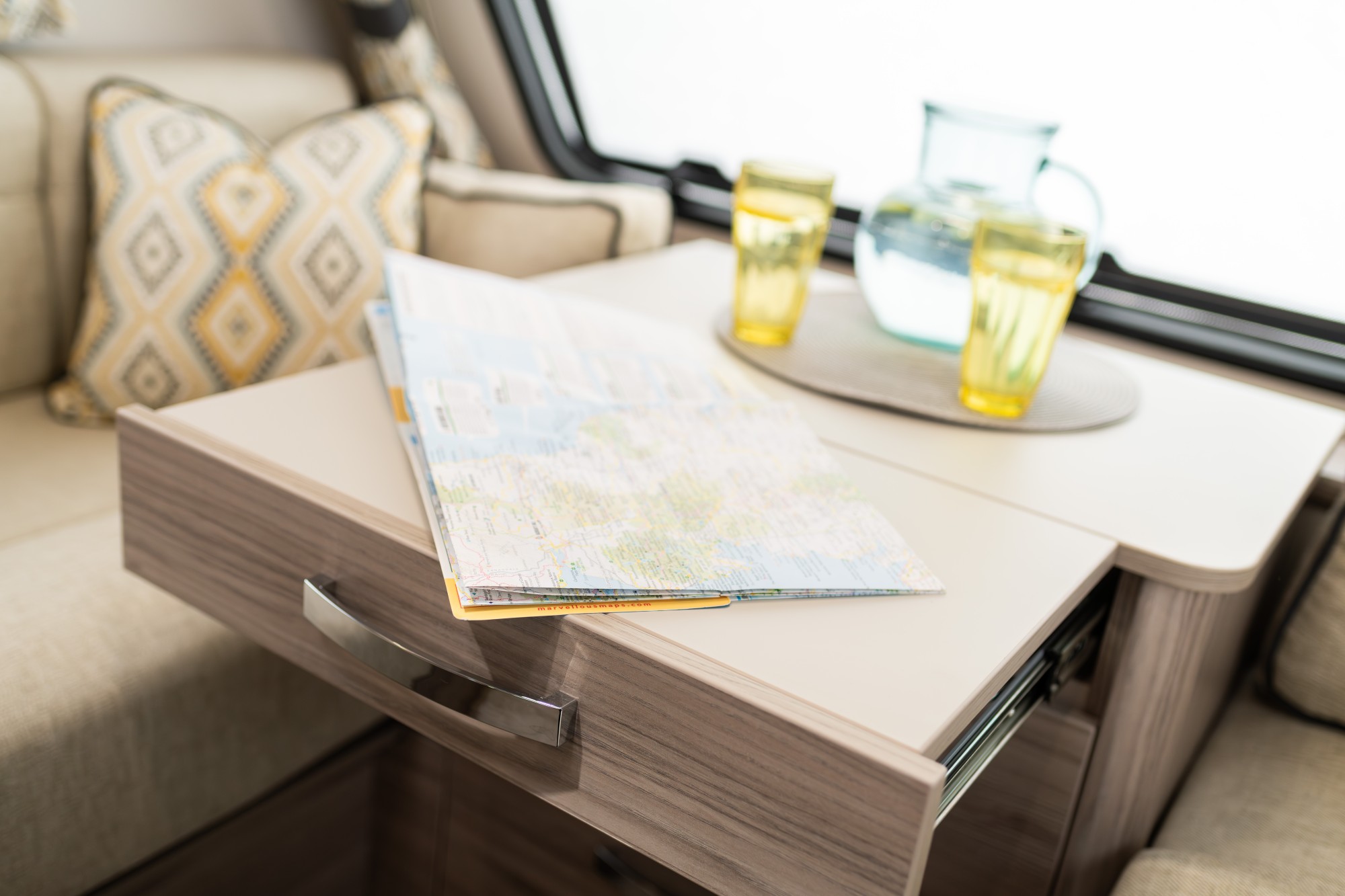

• Craftsman-built removable chest of drawers with dove-tailed joints, pull-out table extension, plus additional free standing table with dedicated storage (in 422, 554 and 585 models).
• Free standing dining table with dedicated storage location

• GRP Sunsation High Gloss White sides. By far the most UV-resistant GRP material in the world with extreme gloss and colour resistance
• AL-KO Galvanised steel chassis with Euro-axle and AL-KO Euro overun device with two-way assisted handbrake
• GRP underskin to caravan floor providing a water resistant barrier
• No-Screws' Fully-bonded SoLiD awning rails
• LED Awning light
• Fully bonded roof for additional strength
• Reinforced step on hitch cover making windows easier to clean
• Fully protected mains electric system with up to seven 230V sockets
• Easy-Slide Chariot-style sockets to exterior
• Contemporary switches, sockets and surrounds
• Exterior access battery box with mains electric inlet (battery not included)
• Entrance step and entrance mat
• High-grade door retainer
• High gloss black acrylic 12V control panel with battery status meter, awning light, 12V master, lighting and water pump switches
• LED reading lights
• Power-saving LED ceiling lights in living and washroom areas
• Seat bases with space underneath for ample storage of larger, bulky items.
• Storage under nearside front bunk, with split access (422 only)
• 25 Meter mains hook-up cable
• Inboard semi-rigid fresh water pipes
• Large bore under-slung rigid waste pipes with offside outlet
• 20 Amp switchmode charger / transformer
• Fixing points for rear mounted 2 cycle 'Fiamma' caravan universal carrier and mounting rail

• CRiS security system
• High security external door locks with single key operation
• All models comply with British and European safety standards as independently verified by NCC
• Balanced wheels for even wear and better fuel consumption
• Concealed security data chip within caravan construction
• Carbon Monoxide (CO) alarm
• Smoke alarm
• Isolation taps for all gas appliances -Fire-retardant upholstery

• 'Ashton' craftsman built cabinetry with 'Tweed' co-ordinating trim. Includes traditional dove-tailed drawers, flat-front 'Quiet-Close' overhead lockers and flush-fit kitchen units - all with concealed positive locking
• Contemporary 'Sonora' upholstery with ActivCare protected hi-performance, lightweight construction, with co-ordinating scatter cushions and bolsters as standard.
• 'Nagoya' textured wallboard
• 400 x 400 MPK Rooflight
• Midi Heki 700x500 (excludes 304)
• Quality and craftsmanship in every detail, including traditional dove-tailed drawers throughout.
• Durable 'Taupe Grey' worktops throughout, including bathroom unit tops
• Removable carpet runner - 'Pebble Twist ' in 'Silver Heno'
• 'Easy clean heavy-duty vinyl flooring in 'Twine'
• Chrome-effect handles (including bathroom door)* *Excludes sliding doors
• Quiet-close wardrobe doors
• Full height, high gloss, stone chip resistant front panel (lightweight composite) with single panoramic opening window
• Full height high gloss rear panel with road lights
• Extra large gas locker compartment for 2 gas bottles, with fitted gas regulator
• Side marker lights
• Exterior 2-part door and fly screen with inbuilt storage as standard
• Stylish wheel trims
• Stylish graphics

• Rapid heat up 8L Whale water heater
• Highflow submersible pump with intelligent controller and inline filter - turns the pump off when the water runs out
• Eco Camel Orbit water-saving Halo shower head with built-in Aircore Technology
• Fully lined shower cubicle (excludes 304)
• 'Boutique' washbowl basin with click-clack plug and swan-neck mixer tap
• Domestic style bathroom door with high quality privacy lock
• Vanity storage unit and mirror
• Polished chrome fittings, mixer taps and separate shower taps
• Chrome-effect bathroom accessories, plus additional towel hooks
• Electric flush toilet

Year: 2024

Model: Xplore 422

Number of Berths: 2

Wheel Rim: 5 1/2 Jx14 5x112

Tyre Size: 175 R14 Li99

Tyre Pressure at MTPLM in psi: Downrate 46 / Standard 48 / Uprate 53

Interior Length: 4200mm / 13'9"

Exterior Body Length: 4800mm / 15'9"

Shipping Length: 5875mm / 19'3"

Overall Width: 2180mm / 7'2"

Overall Height: 2645mm / 8'8"

Overall Height Excluding TV Aerial: 2560mm / 8'5"

Maximum Headroom: 1950mm / 6'5"

Interior Width: 2032mm / 6'8"

Porch Awning Height: 2430mm / 8'0"

Awning Sizes Ground to Ground: 8600mm / 28'3"

Maximum Hitch Weight: 100kgs / 1.97cwt

Mass in Running Order (MIRO): 970kgs / 19.09cwt

Optional Equipment Payload: 22kgs / 0.43cwt

Maximum User Payload: 118kgs / 2.32cwt

Plated M.T.P.L.M: 1110kgs / 21.85cwt

Maximum M.T.P.L.M: 1200kgs / 23.62cwt

Front Mattress Sizes: 1 x Double 1550mm x 2010mm / 5'1" x 6'7"

Side Dinette Mattress Sizes: N/A

Rear Mattress Sizes: N/A

Notes

• Note 1: The Mass in Running Order includes a manufacturing tolerance for material variances and 10kgs per gas bottle, the number of bottles is equal to the number of connections provided at the regulator.
• Note 2: Maximum User Payload includes the Personal Effects payload.
• Note 3: If you require a larger payload it is possible to upgrade the Plated Maximum Technical Permissible Laden Mass. Please contact your supplying retailer for more information.(Exclusions may apply)
• Note 4: Please take care to ensure that you have allowed for the masses of all items you intend to carry in the caravan.
• Note 5: Warning under no circumstances must the plated MTPLM of the caravan be exceeded.
• Note 6: The porch awning height is measured directly above the main entrance door
• Note 7: All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.
• Note 8: All dimensions have a tolerance of +/-25mm
• Note 9: The overall height measurement is taken with the aerial in the lowest position.
• Note 10: All front bed sizes are quoted with the front chest of drawers in place. (Where Applicable)
• Note 11: A MIRO tolerance of +1.5% is permitted as per the NCC COP 304/402 regulation to account for build variance.
• Note 12: To ensure the minimum user payload of the vehicle is delivered and the MTPLM is not exceeded the removal of additionally specified options may be required.

2024 Xplore Options

• Wrap Around Seating (Excludes 304) - £283
• 230V External Socket (Includes 600mm access locker door) - £149
• BBQ Point - £113
• Omnivent In Lieu of 400mm Rooflight (Excludes 304) - £255
• Omnivent Rooflight (304 Only) - £255
• 2 Bike Rack* - £495
• 600mm Access Locker Door - £81
• Mobile Internet and WiFi System* - £382
• Microwave Oven - £255
• Shelf Pack* (Excludes 304 & 442) - £60
• Alarm System - £389
• Tracker - £332
• TV Bracket* (Excludes 442 & 585)- £44
• Weight Plate Update - £0 (FOC)
• ALKO Secure Single Wheel Lock - £311
• ALKO ATC - £608
• SE Pack including alloy wheels, a steel spare wheel with a spare wheel carrier, a radio with MP3 connectivity, hitch stabilizer and a ALKO wheel lock receptor - Xplore 304 - £720, Xplore 422 - £685, Xplore 554 - £826, Xplore 585 £692
• Hypnos Mattress (554 Only) - £438
• Co-ordinated fixed bed cover set (554 Only) - £353

*Dealer Fit
